308LStainless Steel Filler Wire
308LStainless Steel Filler Wire

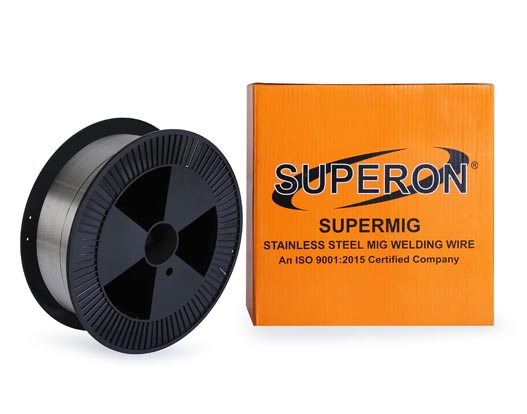

SUPERMIG 308L
DESCRIPTION : SUPERMIG 308L is an extra low carbon 20 Cr/ 9 Ni stainless steel welding consumable suitable for MIG welding of austenitic stainless steels such as 18 Cr /8 Ni type, AISI 301, 302, 304, 304L, 308 and 308L type of steels.
SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)
FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish
SUPERTIG 308L
DESCRIPTION : SUPERTIG 308L is a 20 Cr / 10 Ni stainless steel TIG welding wire similar in composition to ER 308L, suitable for welding of austenitic stainless steels such as 18 Cr/ 8 Ni type, AISI 304, 304L, 308 and 308L type of steels.
SIZE RANGE : 0.80 mm To 5.00 mm (0.030” To 0.196”)
FINISH : Bright Finish
SUPERSAW 308L
DESCRIPTION : SUPERSAW 308L is a 20 Cr / 10 Ni stainless steel submerged arc welding consumable similar in composition to ER 308L, suitable for welding in combination with SAW flux for austenitic stainless steels such as 18 Cr/ 8 Ni type, AISI 304, 304L, 308, 308L, 321 and 347 type of steels.
SIZE RANGE : 1.60 mm to 4.00 mm (0.062” to 0.156”)
Product Name | AWS/SFA | Yield Strength N/mm2 | Tensile Strength N/mm2 | Elongation A5(%) | Impact Energy ISO-V(J) -20° C | Welding Conditions |
---|---|---|---|---|---|---|
SUPERMIG 308L | ER 308L | ≥350 | ≥550 | ≥35 | ≥70 | DC(+) |
SUPERTIG 308L | ER 308L | ≥350 | ≥550 | ≥35 | ≥70 | DC(-) |
SUPERSAW 308L | ER 308L | ≥350 | ≥550 | ≥35 | ≥47 | - |
SUPERMIG 308L - TYPE OF PACKING :
SD 300 / BS 300 | 11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool. |
SD 200 | 4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool. |
SD 100 | 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool. |
Mig Wire in Drum | In Drums of 100-250 Kgs (200-550 Lbs) |
SUPERTIG 308L - TYPE OF PACKING : In Fiber/ Plastic Tubes of 5kg/ 10lbs, Also available in Bulk.
SUPERSAW 308L - TYPE OF PACKING : Layer Wound Coils (With Fiber Core)/ Plastic Core, K415 Metal Spools of 25 Kgs./ 50lbs./ 60lbs.
